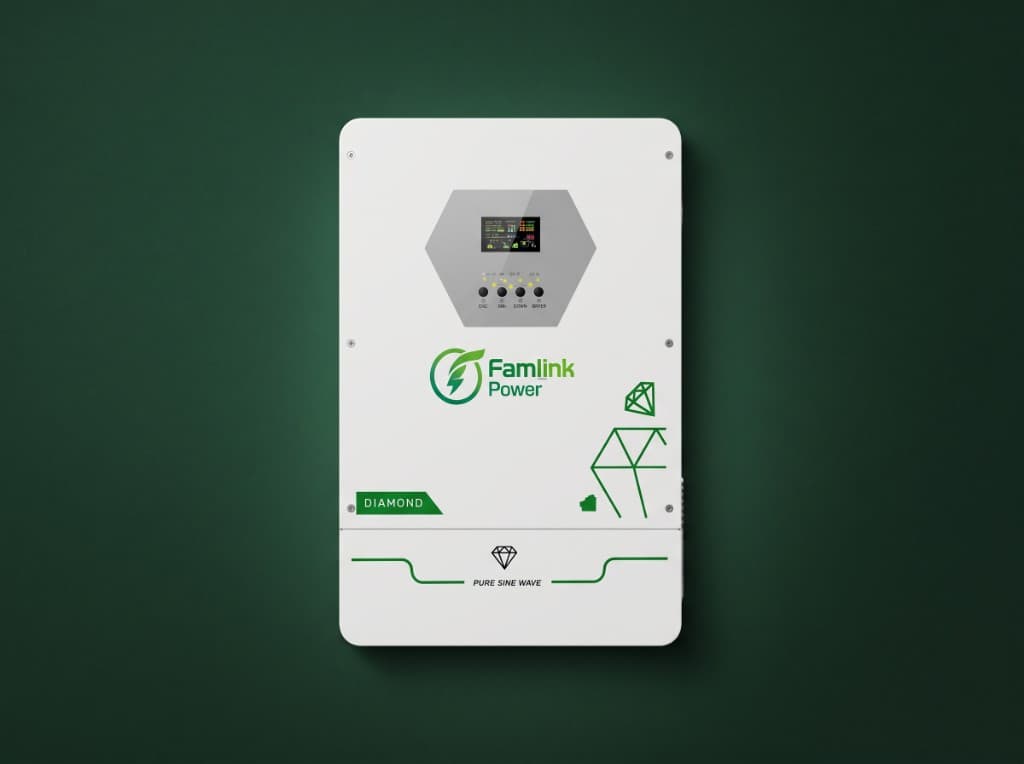

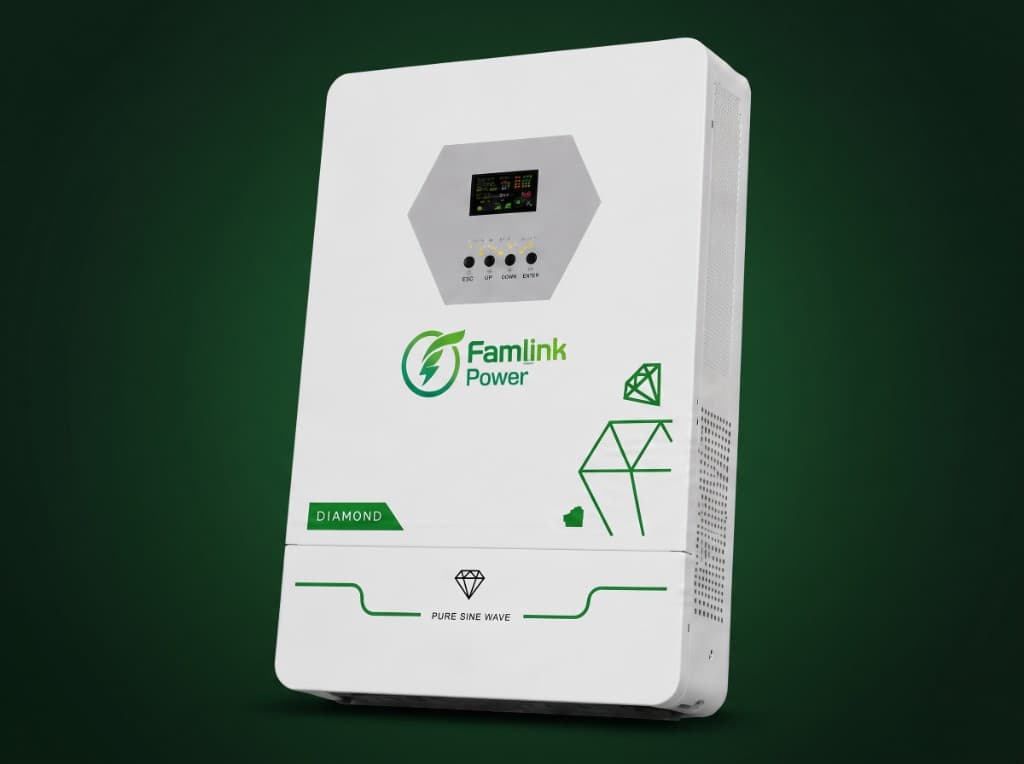

QD6248MH
- 6,200 W rated · 12,400 VA peak
- 48 V battery
- MPPT · 8,500 W max PV
- Parallel up to 9 units
- Pure sine wave
- 5-year warranty · Wi-Fi

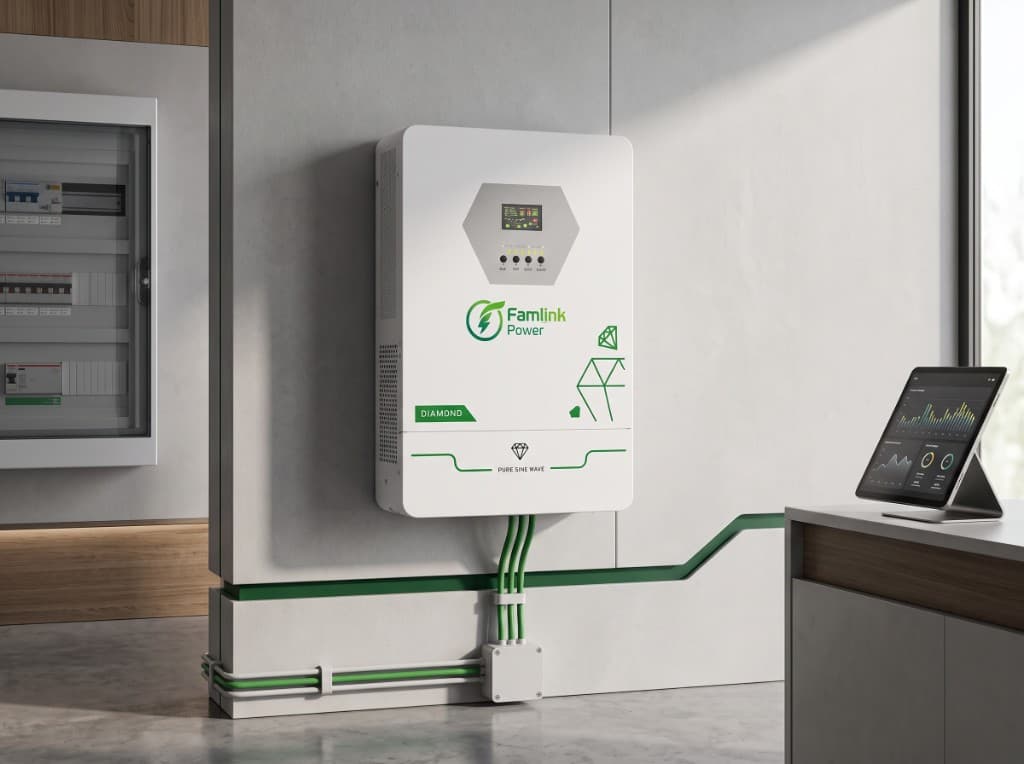

The 6.2 kW Diamond inverter is the mid size we keep in Pakistan. It is 48 V, so it pairs with the 5 kWh and 14 kWh batteries. Rated power is 6,200 W, with 12,400 VA peak.
One MPPT tracker, up to 8,500 W of solar, and parallel operation up to 9 units if a site needs to grow. Fast UPS switch for load-shedding, pure sine wave, LCD, and Wi-Fi.
Specifications
- Model
- QD6248MH
- Rated power
- 6,200 W
- Peak power
- 12,400 VA
- PV inverter output
- 6,500 W
- Battery voltage
- 48 Vdc
- AC input
- 220 / 230 / 240 VAC
- Input voltage range
- 90–280 VAC (normal) · 170–280 VAC (UPS)
- Output waveform
- Pure sine wave
- Output frequency
- 50 / 60 Hz ±0.1%
- PV charging
- MPPT
- Max PV input power
- 8,500 W
- MPPT voltage range
- 60–500 Vdc
- Max PV input voltage
- 500 Vdc
- Max PV input current
- 27 A
- Max PV charging current
- 120 A
- Max AC charging current
- 100 A
- Constant / float charge
- 56.4 Vdc / 54 Vdc
- Transfer time
- ≤10 ms / ≤20 ms
- Max efficiency
- 98%
- Protection rating
- IP21
- Battery-free operation
- Supported
- Parallel operation
- Up to 9 units
- Noise
- ≤50 dB
- Operating temperature
- −10°C to 50°C
- Warranty
- 5 years (2 years replacement, 3 years service)
- Monitoring
- LCD and Wi-Fi
