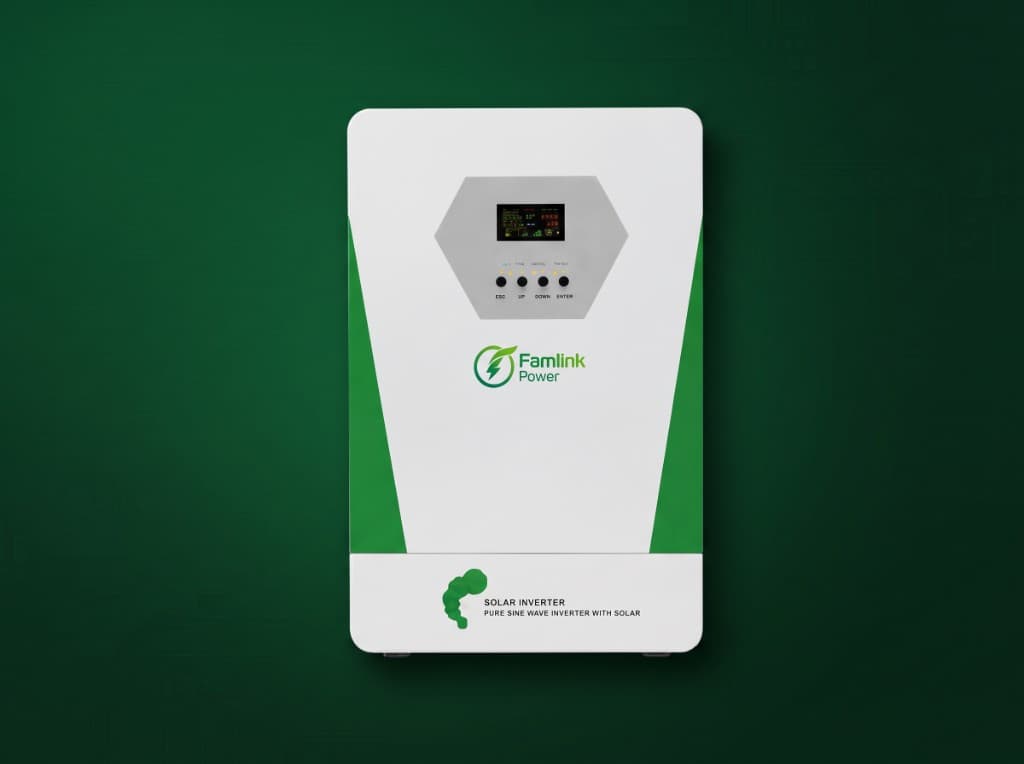

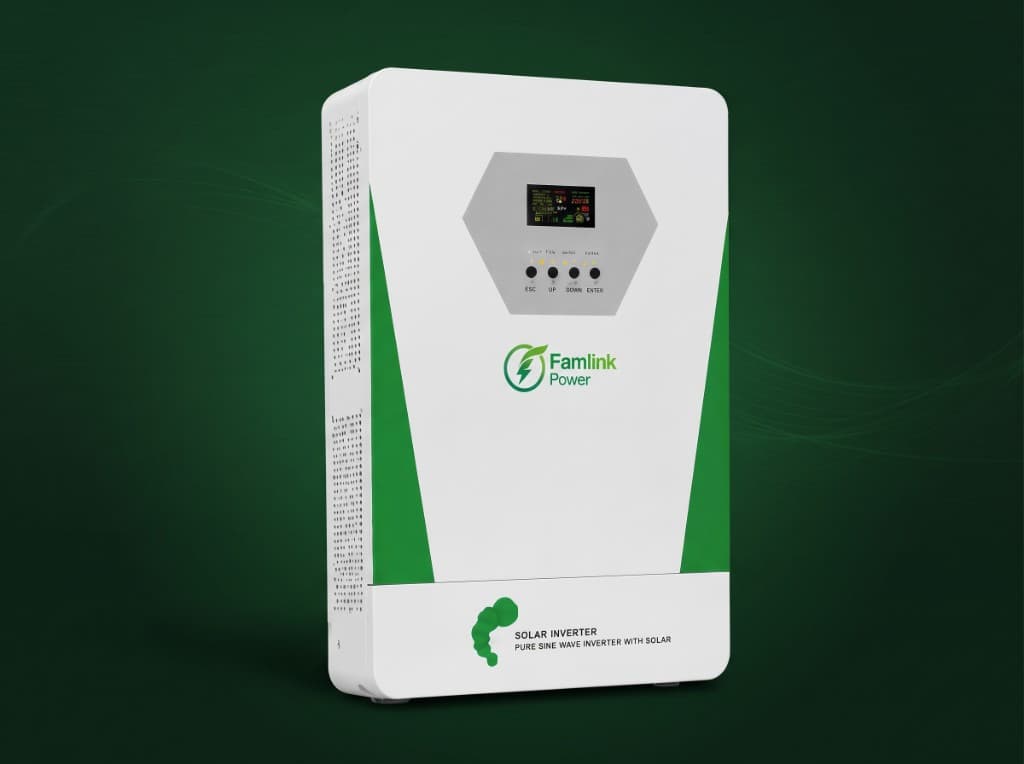

GD4024SMH
- 4,000 W rated · 8,000 VA peak
- 24 V battery
- MPPT · 6,500 W max PV
- Pure sine wave
- UPS transfer under 20 ms
- 5-year warranty · Wi-Fi

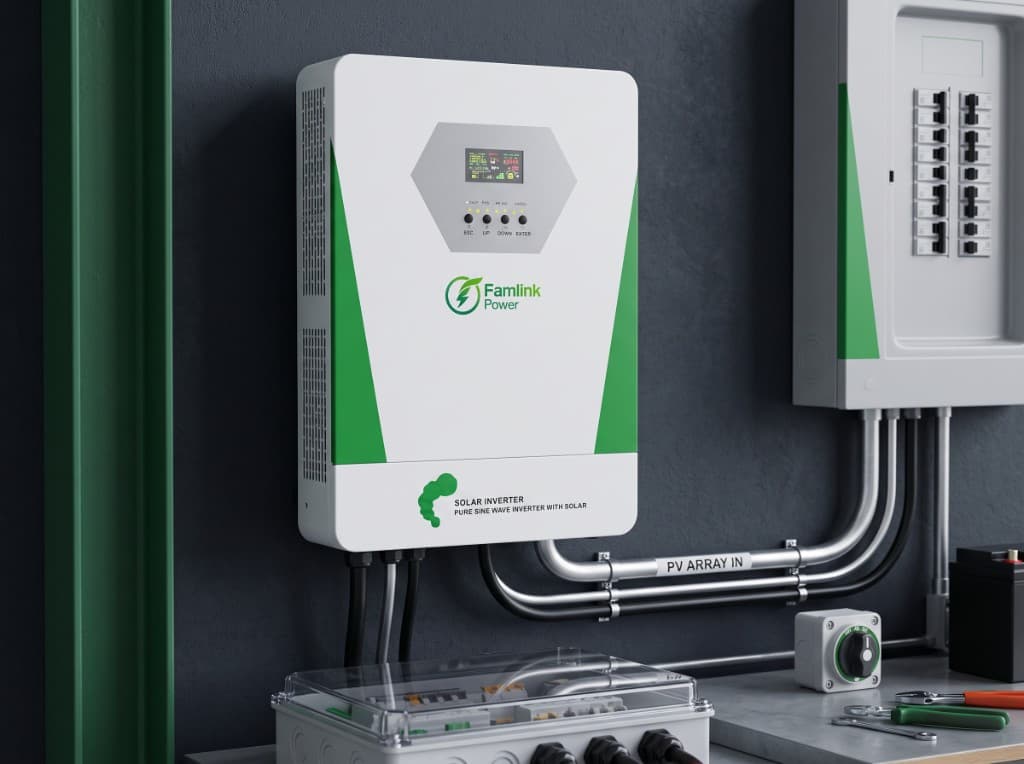

The 4 kW unit is the smaller hybrid inverter we keep in stock. It is 24 V, so it pairs with the 2.5 kWh wall battery. Solar, WAPDA, and battery sit in one box.
MPPT solar charging, pure sine wave, and a fast switch for load-shedding (under 20 ms). Battery-free operation is supported. This model does not run in parallel with a second inverter.
Specifications
- Model
- GD4024SMH
- Rated power
- 4,000 W
- Peak power
- 8,000 VA
- PV inverter output
- 4,500 W
- Battery voltage
- 24 Vdc
- AC input
- 220 / 230 / 240 VAC
- Input voltage range
- 90–280 VAC (normal) · 170–280 VAC (UPS)
- Output waveform
- Pure sine wave
- Output frequency
- 50 / 60 Hz ±0.1%
- PV charging
- MPPT
- Max PV input power
- 6,500 W
- MPPT voltage range
- 60–500 Vdc
- Max PV input voltage
- 500 Vdc
- Max PV input current
- 27 A
- Max PV charging current
- 120 A
- Max AC charging current
- 100 A
- Constant / float charge
- 28.2 Vdc / 27 Vdc
- Transfer time
- ≤10 ms / ≤20 ms
- Max efficiency
- 98%
- Protection rating
- IP21
- Battery-free operation
- Supported
- Parallel operation
- Not supported
- Noise
- ≤50 dB
- Operating temperature
- −10°C to 50°C
- Warranty
- 5 years (2 years replacement, 3 years service)
- Monitoring
- LCD and Wi-Fi
