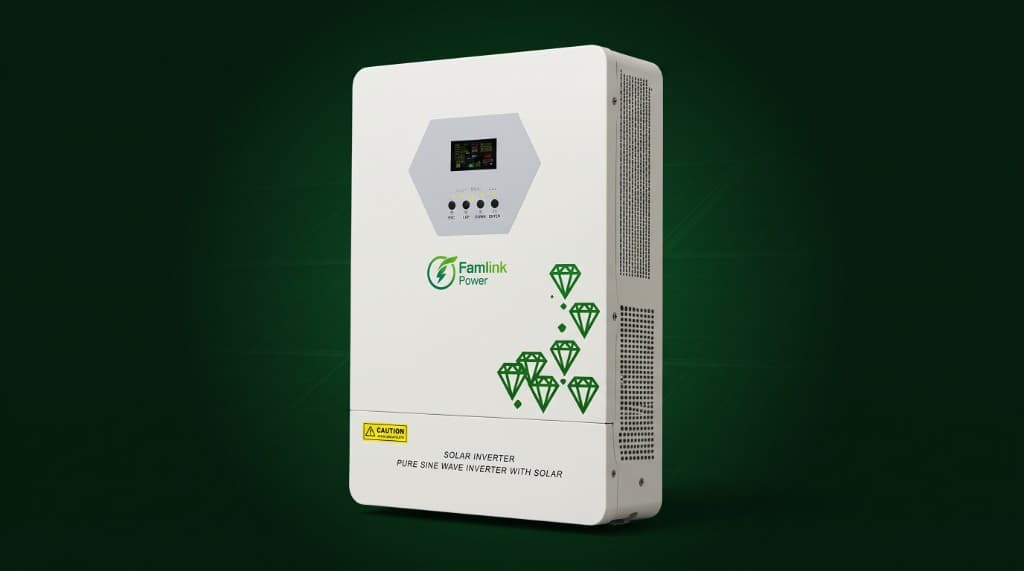

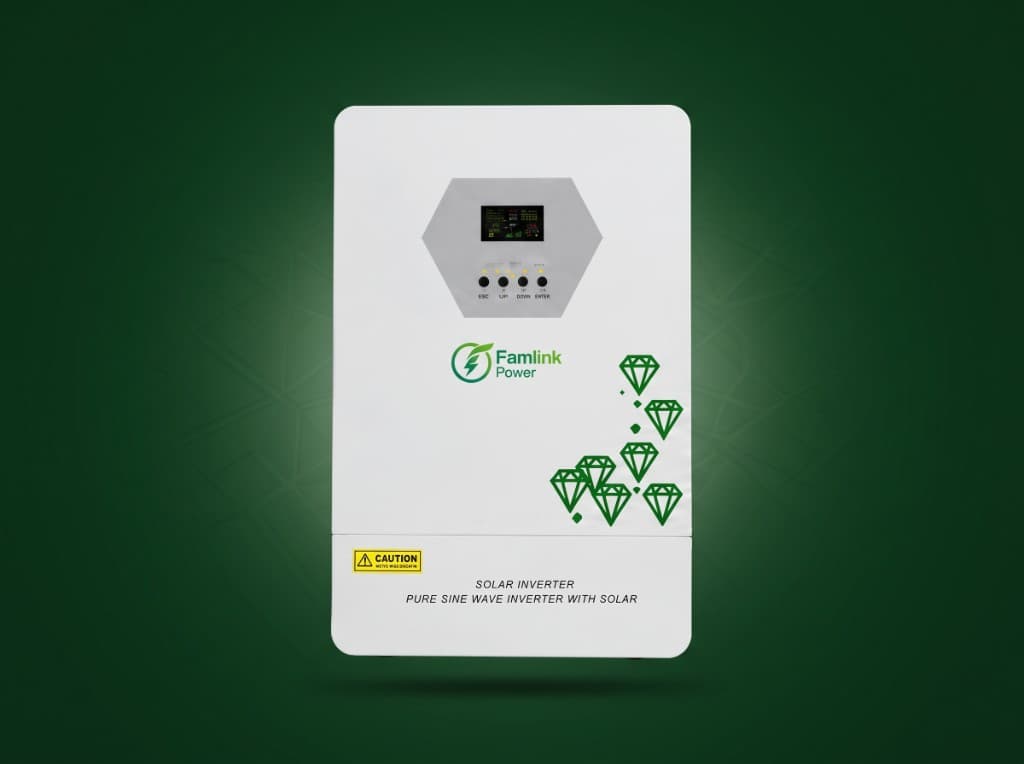

GDT1048SMH
- 11,000 W rated · 22,000 VA peak
- 48 V battery
- Dual MPPT · 2 × 7,500 W PV
- Parallel up to 9 units
- Pure sine wave
- 5-year warranty · Wi-Fi

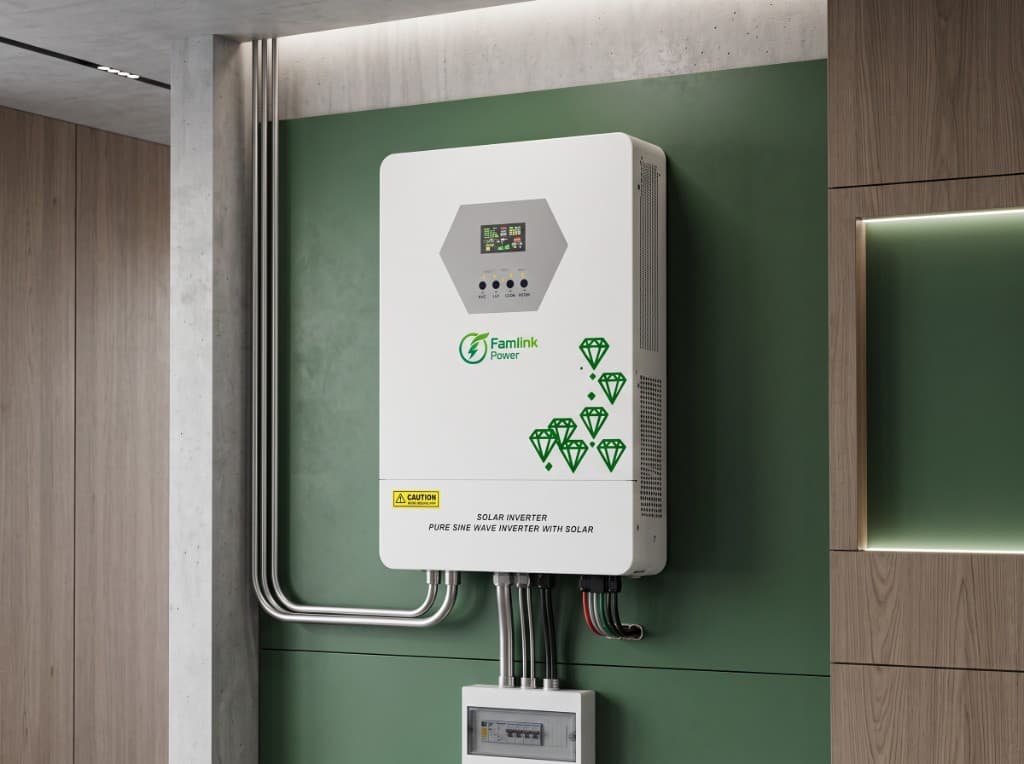

The 11 kW inverter is the large hybrid we keep in stock. Dual MPPT, 11,000 W rated, 22,000 VA peak, and 48 V. It is for bigger homes, shops, and sites that need more solar and more backup.
Max PV is 2 × 7,500 W. Parallel up to 9 units. Same fast UPS switch, pure sine wave, LCD, and Wi-Fi as the rest of the series. Five-year warranty: two years replacement, then three years service.
Specifications
- Model
- GDT1048SMH
- Rated power
- 11,000 W
- Peak power
- 22,000 VA
- PV inverter output
- 12,000 W
- Battery voltage
- 48 Vdc
- AC input
- 220 / 230 / 240 VAC
- Input voltage range
- 90–280 VAC (normal) · 170–280 VAC (UPS)
- Output waveform
- Pure sine wave
- Output frequency
- 50 / 60 Hz ±0.1%
- PV charging
- Dual MPPT
- Max PV input power
- 2 × 7,500 W
- MPPT voltage range
- 90–500 Vdc
- Max PV input voltage
- 500 Vdc
- Max PV input current
- 27 A / 27 A
- Max PV charging current
- 150 A
- Max AC charging current
- 150 A
- Constant / float charge
- 56.4 Vdc / 54 Vdc
- Transfer time
- ≤10 ms / ≤20 ms
- Max efficiency
- 98%
- Protection rating
- IP21
- Battery-free operation
- Supported
- Parallel operation
- Up to 9 units
- Noise
- ≤50 dB
- Operating temperature
- −10°C to 50°C
- Warranty
- 5 years (2 years replacement, 3 years service)
- Monitoring
- LCD and Wi-Fi
