FM-WMS-5KWD5
- 5.12 kWh · 51.2 V · 100 Ah
- Wall mounted, 46 kg
- 8,000 life cycles
- 10-year warranty
- IP40
- Wi-Fi and Bluetooth

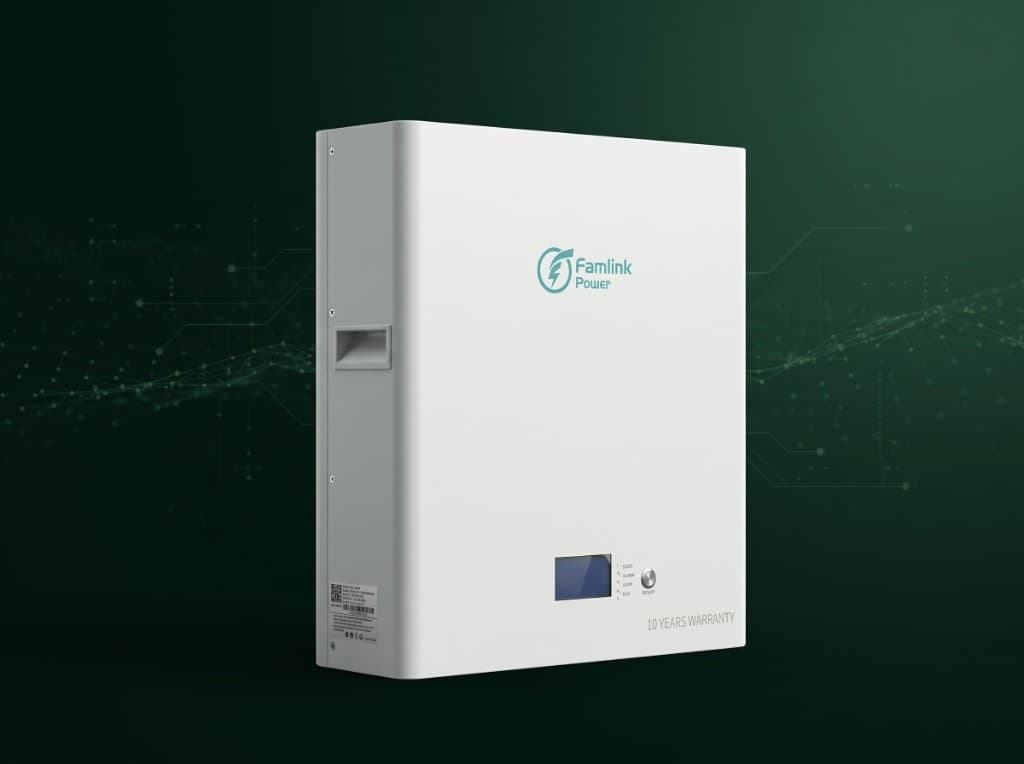

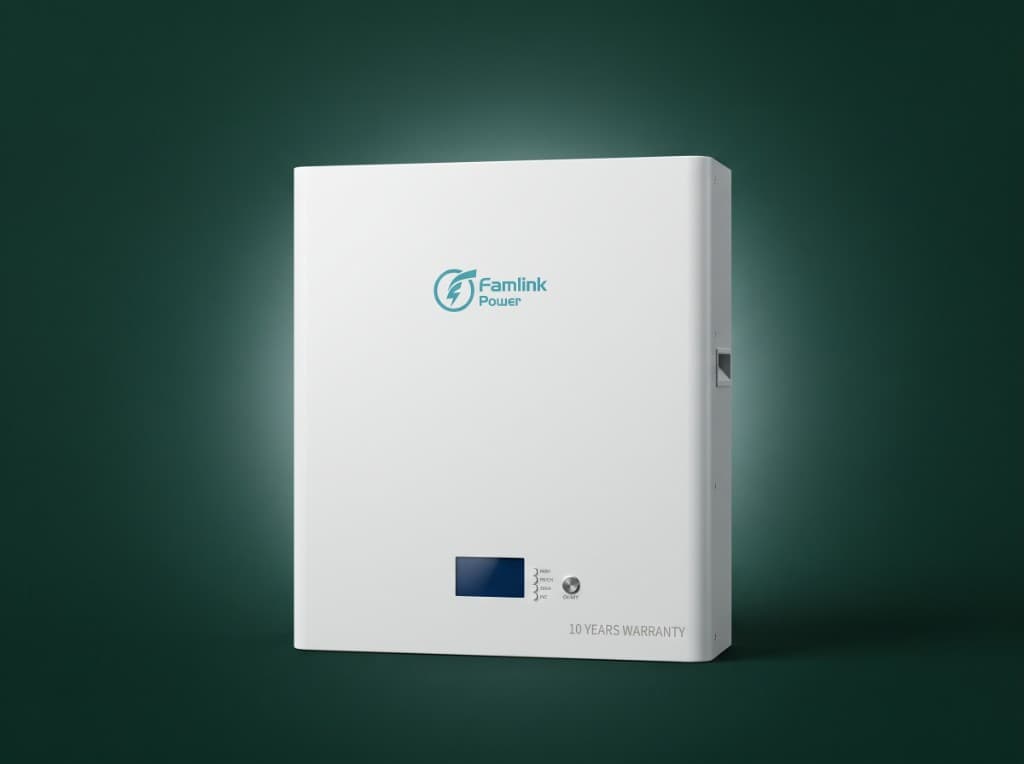

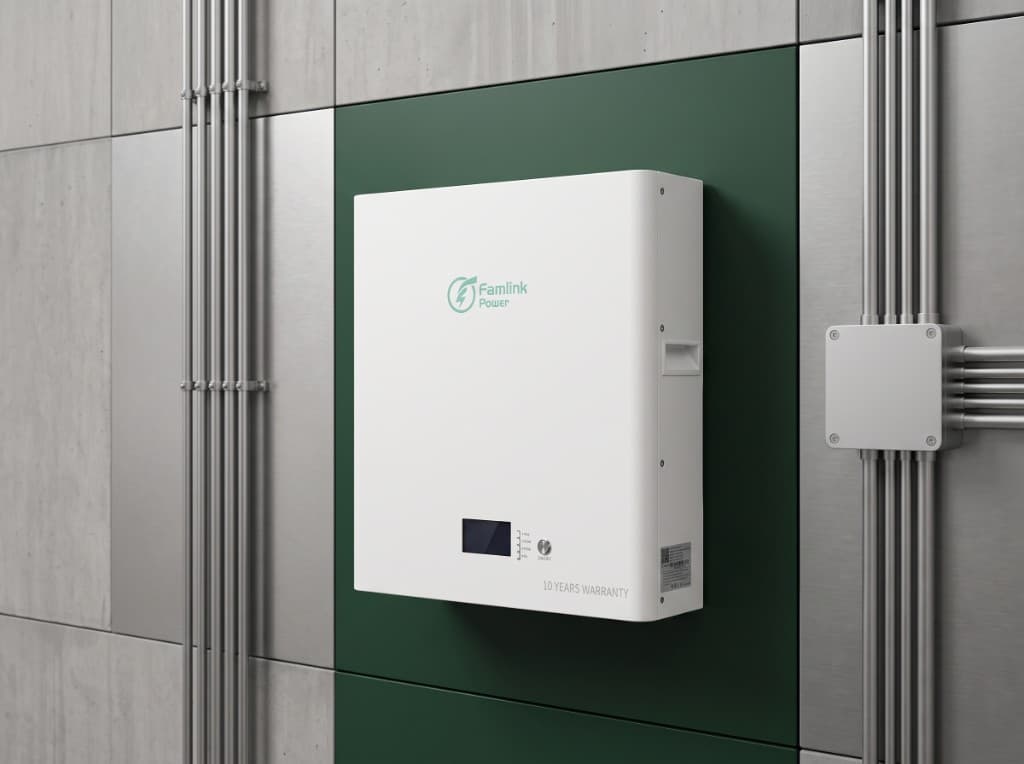

The 5.12 kWh wall battery is the mid size we keep in stock. It is 51.2 V, so it pairs with the 48 V hybrid inverters. It hangs on the wall and has a small screen on the front.
Ten-year warranty, 8,000 life cycles, and IP40. Add more units later — up to 16 in parallel — if the house or shop grows.
Specifications
- Model
- FM-WMS-5KWD5
- Voltage
- 51.2 V
- Capacity
- 100 Ah
- Energy
- 5.12 kWh
- Dimensions (L × W × H)
- 500 × 450 × 140 mm
- Weight
- 46 kg
- Warranty
- 10 years
- IP protection
- IP40
- Operating voltage
- 40–57.6 Vdc
- Max. charging voltage
- 58 Vdc
- Max. charge / discharge current
- 100 A
- Life cycles
- 8,000
- Communication
- CAN / RS485, Wi-Fi, Bluetooth
