FM-WMS-2.5KWD5
- 2.56 kWh · 25.6 V · 100 Ah
- Wall mounted, 25 kg
- 6,000 life cycles
- 5-year warranty
- Wi-Fi and Bluetooth
- Up to 16 batteries in parallel

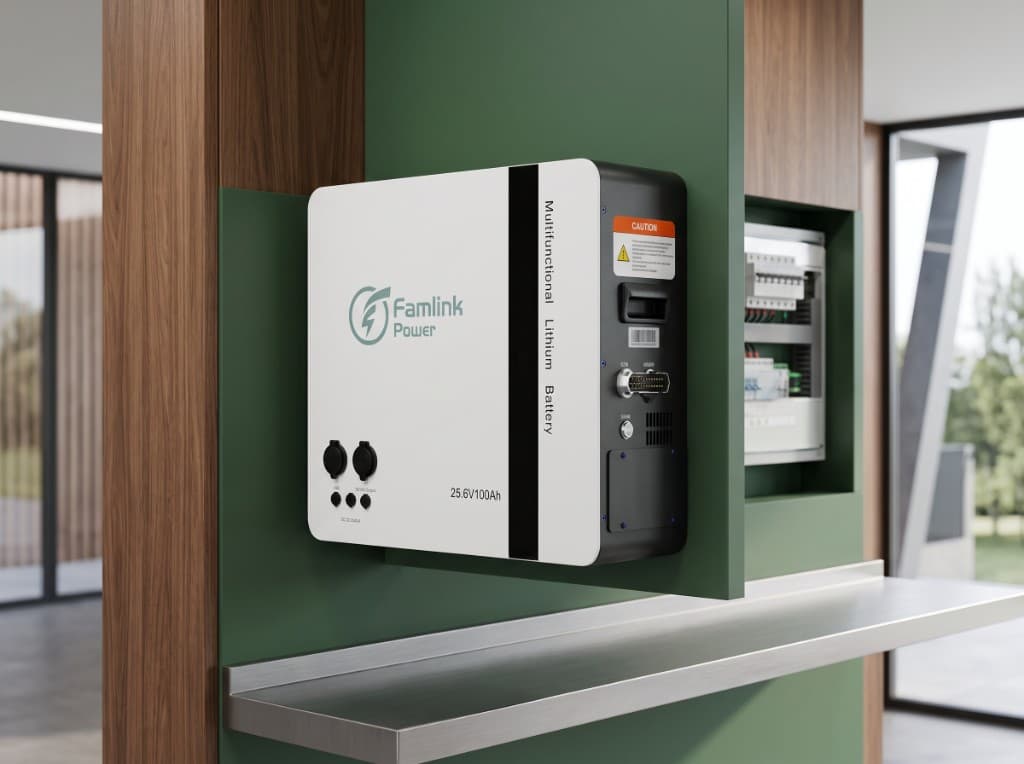

This is the smaller Famlink wall battery we keep in Pakistan. It is 2.56 kWh, 25.6 V, and hangs on the wall, so it does not take floor space in a room or shop.
Use it for a small home, a shop counter, or as the first battery in a system that can grow. Up to 16 units can run in parallel. Wi-Fi and Bluetooth are built in.
Specifications
- Model
- FM-WMS-2.5KWD5
- Voltage
- 25.6 V
- Capacity
- 100 Ah
- Energy
- 2.56 kWh
- Dimensions (L × W × H)
- 440 × 402 × 150 mm
- Weight
- 25 kg
- Warranty
- 5 years
- IP protection
- IP20
- Operating voltage
- 20–28.8 Vdc
- Max. charging voltage
- 28.8 Vdc
- Max. charge / discharge current
- 100 A
- Life cycles
- 6,000
- Communication
- CAN / RS485, Wi-Fi, Bluetooth
